M30

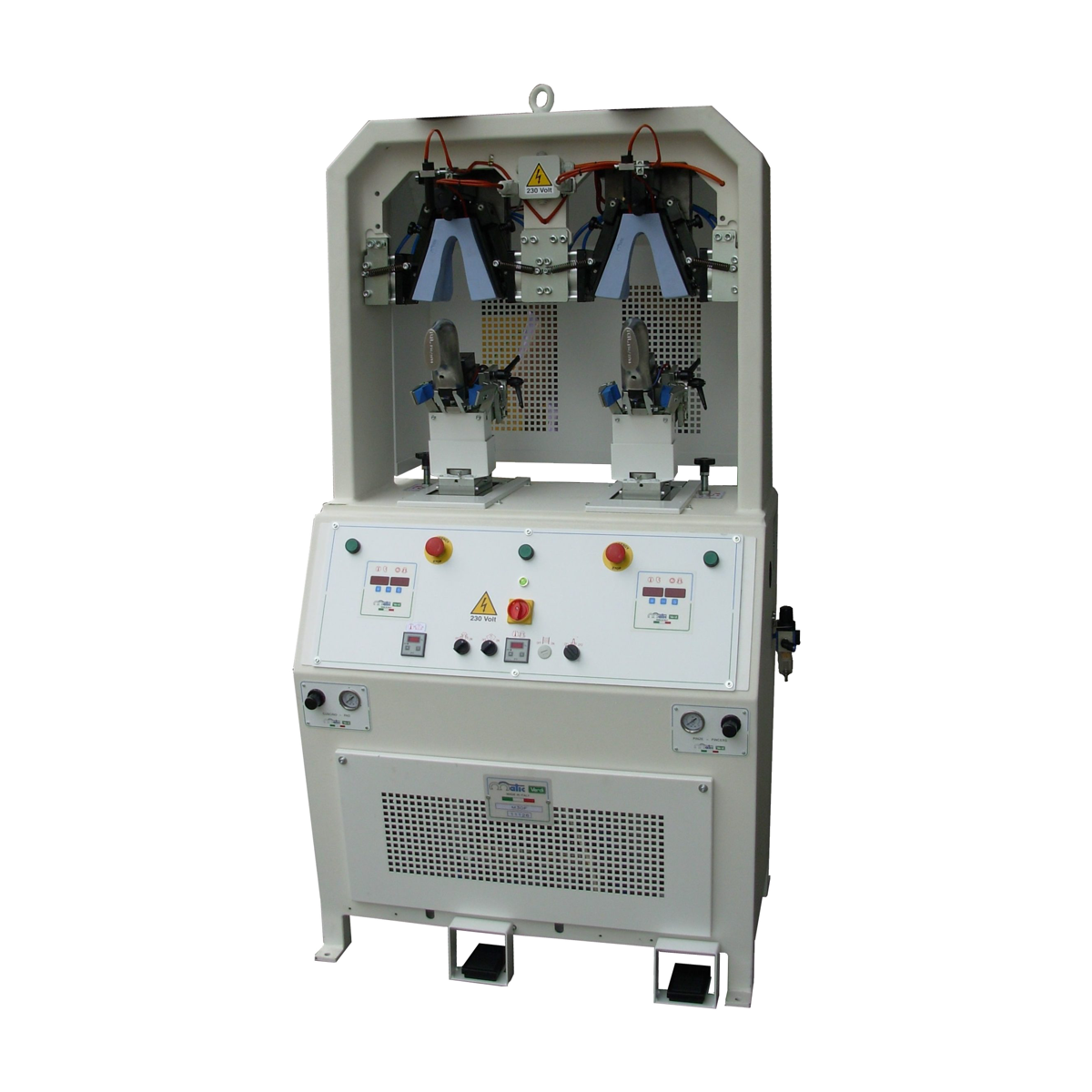

Backpart moulding machine 2 hot stations
  • Hot RUBBER pad
  • Reinforced structure
  • Moulds inclined towards the operator
  • Alu-mould raise to the pad
  • Horizontally pivoted pincers with variable pulling direction “S”

Description

Any type of uppers, the machine is particulary indicated to manage uppers with precemented boards or solvent activated counters.
The operators loads an upper, with counter inserted, onto the heated mould, pulling pincers tension the upper then moulding phase starts: the inner mould moves inwards and pad clamps. By heating and pressure counter is activated and the materials (upper, counter and lining) are laminated togheter without defects. Backpart of the upper at this point is moulded and the shape is stabilized. When settled time is dwell, the upper is released while moulds return to start position to allow unloading and new cycle.
Electronic control with digital visualization of heated moulds temperatures.

Clear view of the back seam during loading of the upper onto heated mould, thanks to mould inclination towards the operator.

Pulling pincers are pivoted to allow regulation of the gripping position according to the mould curve.

Pulling direction can be settled according to the type of upper.

The heated moulds are constructed according to the shape of customer’s last.
