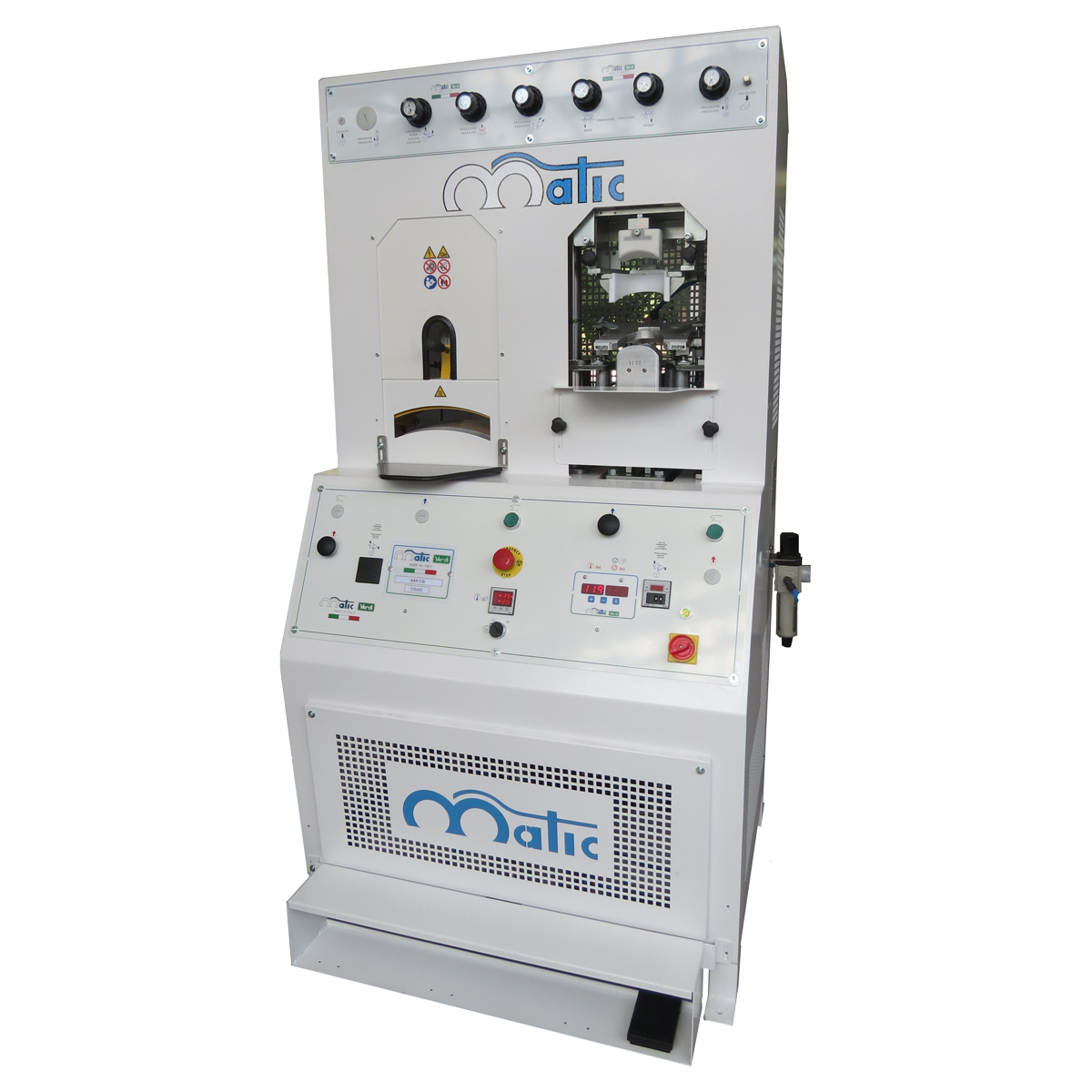

The operator loads an upper (or the only forepart), with toe-puff inserted, inside the heated moulds. then activating cycle begins: by heating and pressure the toe part is activated and the materials (upper, toe-puff and lining) are laminated togheter without defects. When activation is finished, upper is released. The operator unloads it from heated station and loads onto cooled one, locking pincers keep the upper then moulding cycle starts: the synthetic shaped band descents on cooled last spreading the upper and making it to fit onto the alu-mould. The upper at this point is moulded and its shape is stabilized. When settled time is dwell the upper is released and moulds return to start position to allow unloading and new cycle.

Clear view and precision during loading of the upper onto cooled mould, thanks to movable mechanical stops with graduated scale.

Electronic control with digital visualisation of heated and cooled moulds temperatures.

Possibility of adjustment/adapting to different upper thickness from lighter uppers to the more thick ones.

The heated moulds are constructed according to the shape of customer’s last.
